Back to Flatbed Transporters Flatbed Transporter with Lift
Move & Lift

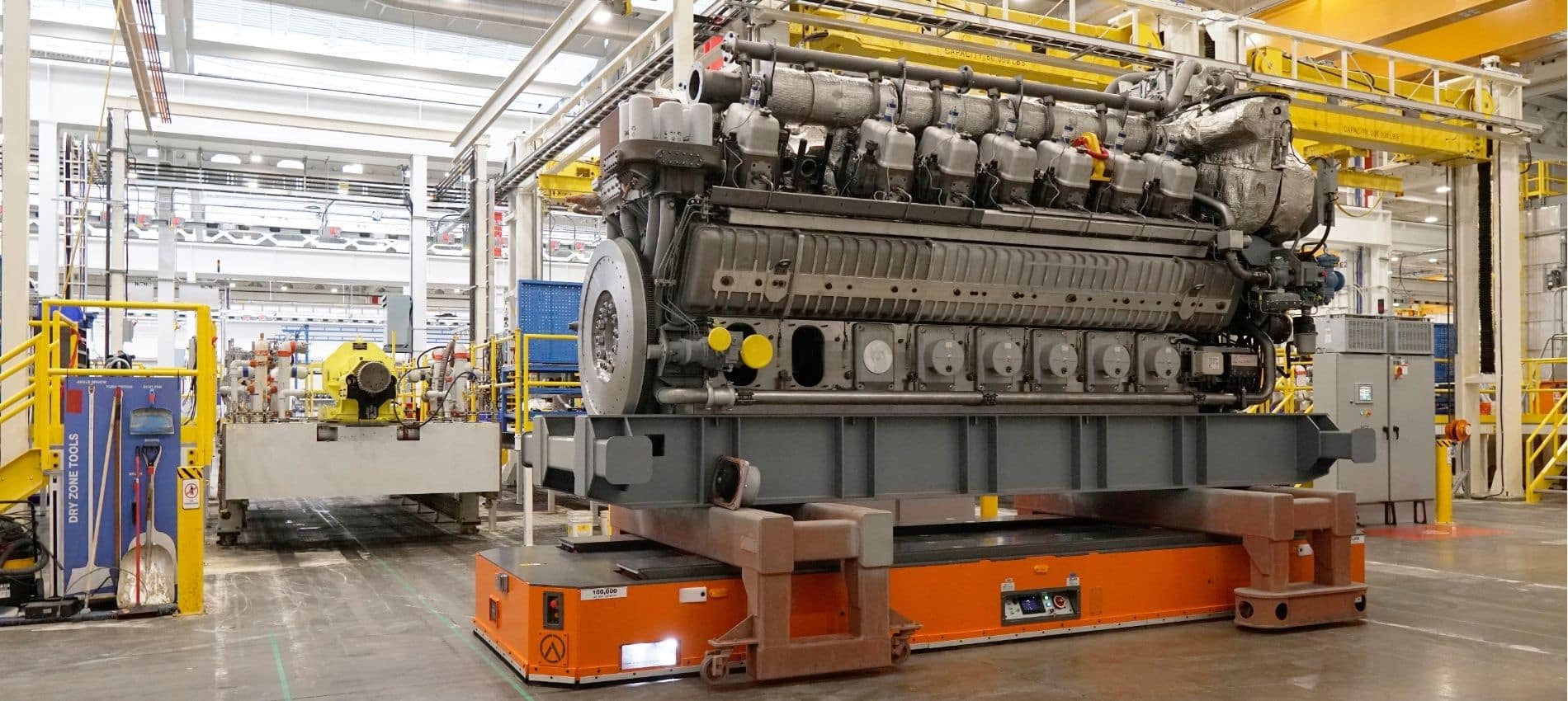

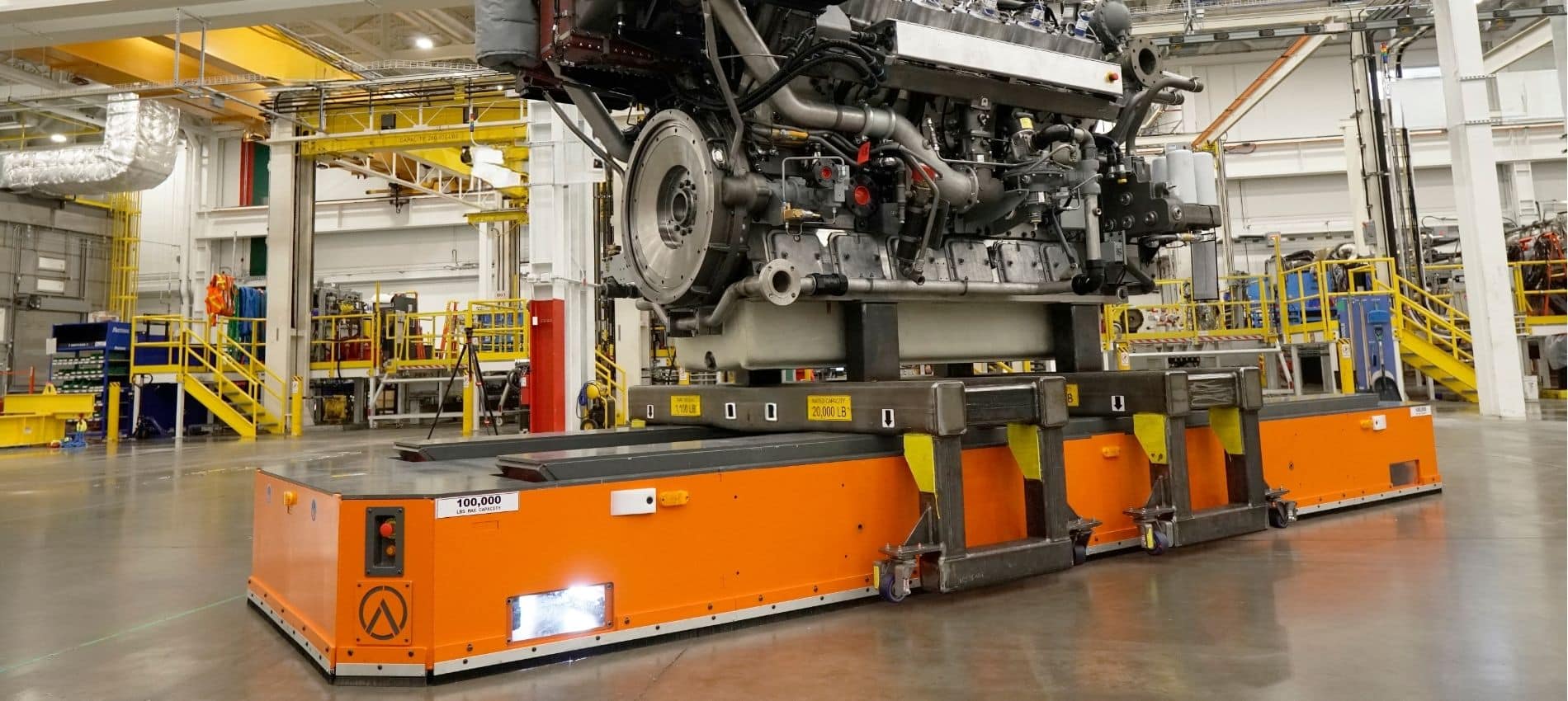

Designed to move loads up to 220,500 lbs. with a battery propelled drive unit, the AGV Flatbed Transporter makes moving heavy loads across a facility easy and automated.
Designed to move loads up to 220,500 lbs. with a battery propelled drive unit, the AGV Flatbed Transporter makes moving heavy loads across a facility easy and automated.
Flatbed Transporter with Lift
Specs & Sizing
Features
Video Library
Flatbed Transporter with Lift
Flatbed Transporters are high capacity, highly capable, battery-powered units that maneuver loads up to hundreds of thousands of pounds on wheels throughout a facility. The Transporters are controlled via RF controller and can be optioned with a stand-on operator platforms. As with all of our electric transporters, the Flatbed Transporter is able to be operated autonomously with our AGV Technology.
View Resources
Product
Measurement Units
|
Model No.
Model No.
|
Capacity (lbs)
Capacity (kgs)
|
Length (in)
Length (mm)
|
Width (in)
Width (mm)
|
Height (in)
Height (mm)
|
Stroke (in)
Stroke (mm)
|
Battery (volts/amps)
Battery (volts/amps)
|
Recharge Time 50-95% (hrs)
Recharge Time 50-95% (hrs)
|
Number of Drives
Number of Drives
|
Speed max (FpM)
Speed max (MpM)
|
Battery Life (ft)
Battery Life (m)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
Model No.
Model No.
HED020-0010
HED020-0010
|
Capacity (lbs)
Capacity (kgs)
22,000
10,000
|
Length (in)
Length (mm)
98 7/16
2,500
|
Width (in)
Width (mm)
55 1/8
1,400
|
Height (in)
Height (mm)
19 11/16
500
|
Stroke
Stroke
3 1/8
80
|
Battery (volts/amps)
Battery (volts/amps)
48V 160 A
48V 160 A
|
Recharge Time (hrs)
Recharge Time (hrs)
3
3
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
180
55
|
Battery Life (ft)
Battery Life (m)
13,100
4,000
|
|
Model No.
Model No.
HED020-0020
HED020-0020
|
Capacity (lbs)
Capacity (kgs)
44,000
20,000
|
Length (in)
Length (mm)
118 1/8
3,000
|
Width (in)
Width (mm)
63
1,600
|
Height (in)
Height (mm)
22 13/16
580
|
Stroke
Stroke
3 1/8
80
|
Battery (volts/amps)
Battery (volts/amps)
48V 320 A
48V 320 A
|
Recharge Time (hrs)
Recharge Time (hrs)
3
3
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
150
45
|
Battery Life (ft)
Battery Life (m)
19,700
6,000
|
|
Model No.
Model No.
HED020-0030
HED020-0030
|
Capacity (lbs)
Capacity (kgs)
66,000
30,000
|
Length (in)
Length (mm)
137 13/16
3,500
|
Width (in)
Width (mm)
78 3/4
2,000
|
Height (in)
Height (mm)
25 9/16
650
|
Stroke
Stroke
3 15/16
100
|
Battery (volts/amps)
Battery (volts/amps)
48V 420 A
48V 420 A
|
Recharge Time (hrs)
Recharge Time (hrs)
6
6
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
100
30
|
Battery Life (ft)
Battery Life (m)
19,700
6,000
|
|
Model No.
Model No.
HED020-0040
HED020-0040
|
Capacity (lbs)
Capacity (kgs)
88,000
40,000
|
Length (in)
Length (mm)
157 1/2
4,000
|
Width (in)
Width (mm)
78 3/4
2,000
|
Height (in)
Height (mm)
25 9/16
650
|
Stroke
Stroke
3 15/16
100
|
Battery (volts/amps)
Battery (volts/amps)
48V 420 A
48V 420 A
|
Recharge Time (hrs)
Recharge Time (hrs)
6
6
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
100
30
|
Battery Life (ft)
Battery Life (m)
13,100
4,000
|
|
Model No.
Model No.
HED020-0060
HED020-0060
|
Capacity (lbs)
Capacity (kgs)
132,500
60,000
|
Length (in)
Length (mm)
157 1/2
4,000
|
Width (in)
Width (mm)
78 3/4
2,000
|
Height (in)
Height (mm)
25 9/16
650
|
Stroke
Stroke
3 15/16
100
|
Battery (volts/amps)
Battery (volts/amps)
48V 420 A
48V 420 A
|
Recharge Time (hrs)
Recharge Time (hrs)
6
6
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
100
30
|
Battery Life (ft)
Battery Life (m)
13,100
4,000
|
|
Model No.
Model No.
HED020-0080
HED020-0080
|
Capacity (lbs)
Capacity (kgs)
176,500
80,000
|
Length (in)
Length (mm)
177 3/16
4,500
|
Width (in)
Width (mm)
90 9/16
2,300
|
Height (in)
Height (mm)
29 1/2
750
|
Stroke
Stroke
5 7/8
150
|
Battery (volts/amps)
Battery (volts/amps)
48V 600 A
48V 600 A
|
Recharge Time (hrs)
Recharge Time (hrs)
6
6
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
85
26
|
Battery Life (ft)
Battery Life (m)
9,850
3,000
|
|
Model No.
Model No.
HED020-0100
HED020-0100
|
Capacity (lbs)
Capacity (kgs)
220,500
100,000
|
Length (in)
Length (mm)
177 3/16
4,500
|
Width (in)
Width (mm)
90 9/16
2,300
|
Height (in)
Height (mm)
29 1/2
750
|
Stroke
Stroke
5 7/8
150
|
Battery (volts/amps)
Battery (volts/amps)
48V 600 A
48V 600 A
|
Recharge Time (hrs)
Recharge Time (hrs)
6
6
|
Number of Drives
Number of Drives
1
1
|
Speed Max (FpM)
Speed Max (MpM)
85
26
|
Battery Life (ft)
Battery Life (m)
9,850
3,000
|
Looking for a customized solution? We do that too.
Request a Free Consultation
HIGH
CAPACITY
CAPACITY
Our Flatbed Transporters have capacities up to 500 tons, and can be customized to meet your facility’s needs. You need it, we’ll make it.
EMISSION
FREE
FREE
No fumes, gases, or odd smells will be put into the air of your facility. Our electric transporters are emission free and operate clean and green. The whole transporter recharges within just a few short hours, allowing your facility to stay on top of its game and minimize downtime.
LIFT
CAPABILITIES
CAPABILITIES
Our Flatbeds feature lifts on their tops, making it simple to lift loads and carefully transport them to a different location in your facility.
Flatbed Transporter with Lift Video Library
FREQUENT QUESTIONS
What’s the difference between a Flatbed Transporter and a Pallet Transporter?
The Pallet Transporter is a low-profile loading bed, with a controllable unit at the end. Our Flatbed Transporters are an all-in-one design and offer a higher load height than other transporters.
I don’t see the right size or product that I’m looking for.
In addition to our readily available sizes, we offer custom engineering and development to come up with solutions unique to each customer. If you’re looking for specific sizing or if you need help finding the right solution for you, click the “Contact Us” button for different ways you can reach us.
What type of battery options are available on Hedin USA products?
We offer our products with the choice of either dry and wet cell batteries. Please contact our sales engineering team to determine which battery type is best suited for your application.
