PTT6 Power Tugger

80,000 LBS TUGGER

Designed to move up to 80,000 pounds, the PTT6 Power Tugger is the ideal solution for easily moving heavy loads on a facility floor.
Designed to move up to 80,000 pounds, the PTT6 Power Tugger is the ideal solution for easily moving heavy loads on a facility floor.
slider-left-arrow
slider-left-arrow
Specs & Sizing
Features
Video Library

PTT6 Power Tugger

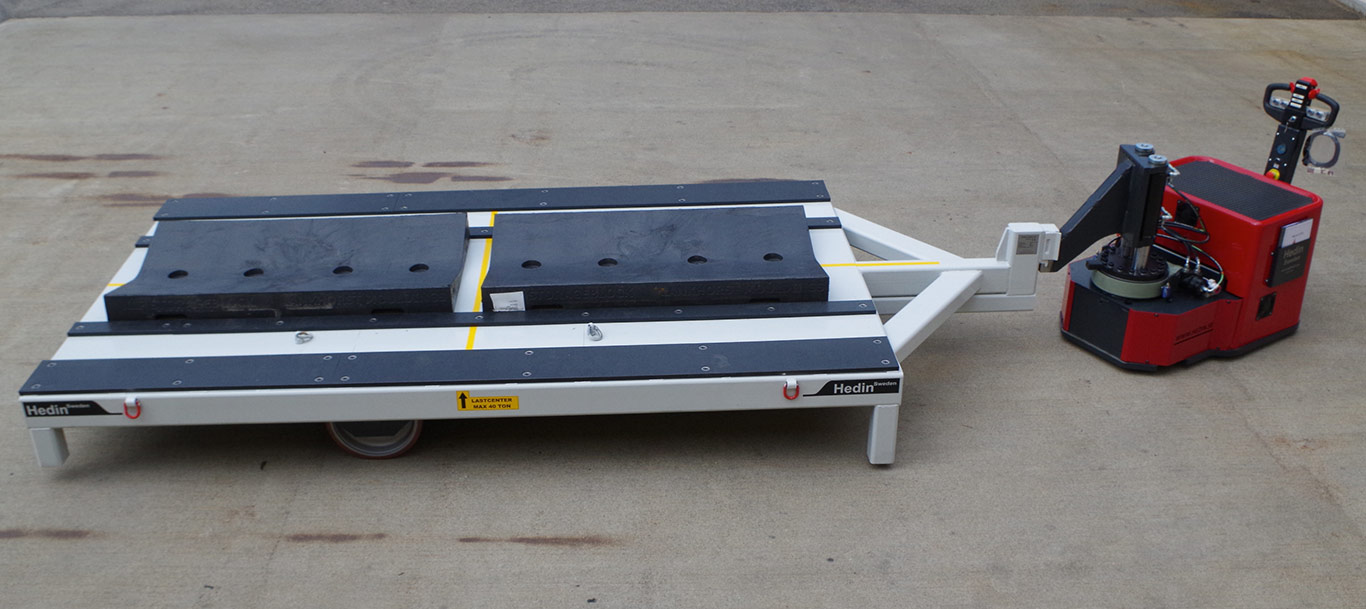

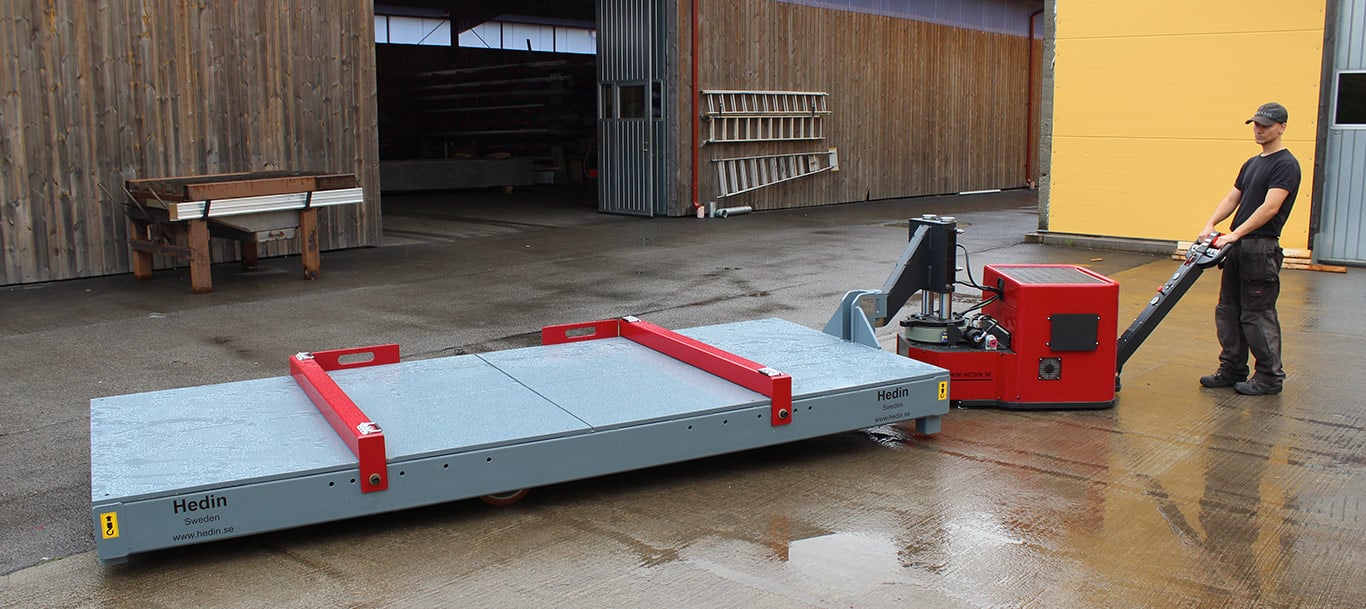

Hedin USA’s PTT3 and PTT6 Power Tuggers are designed to be powerful machines, maneuvering up to 80,000 lbs. The tuggers work by lifting the front end of non-motorized trailers, carts, or pallets, and distribute the load to the wheels on the trailer. By taking on the sheer weight of the load, a single operator can comfortable maneuver heavy loads around a facility at speeds up to 120 feet per minute.
View Gallery
video image video image

Video

PTT-6 Power Tugger Demo
View video
video image video image

Video

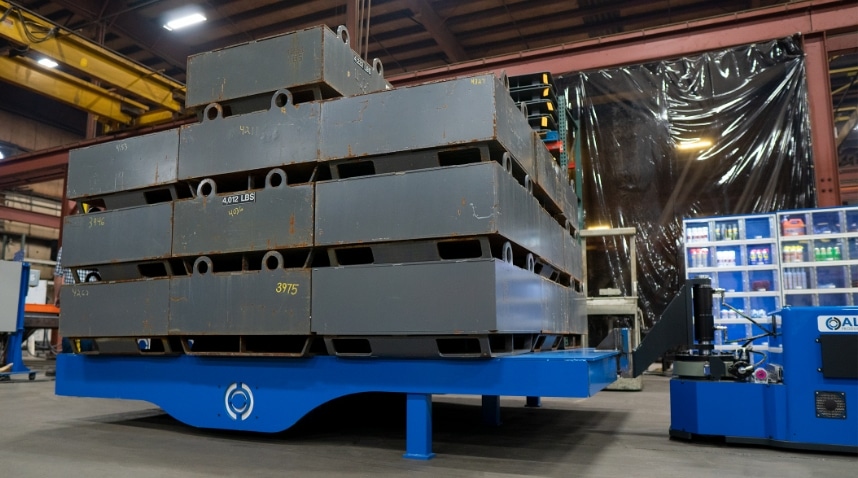

80,000 lbs. Battery Powered Tugger and Ox Cart
View video
Product
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Stroke (in)
Stroke (mm)
Ball Connection Lifting Capacity (lbs)
Ball Connection Lifting Capacity (kg)
Battery (volts/amps)
Battery (volts/amps)
Recharge Time 50-95% (hrs)
Recharge Time 50-95% (hrs)
Speed max (FpM)
Speed max (MpM)
Battery Life (ft)
Battery Life (m)
Model No.
Model No.
APS030-2200
APS030-2200
Capacity (lbs)
Capacity (kgs)
80,000
36,000
Length (in)
Length (mm)
60 9/16
1,538
Width (in)
Width (mm)
32 11/16
830
Height (in)
Height (mm)
34 15/16
888
Stroke
Stroke
6
150
Ball Connection Lifting Capacity (lbs)
Ball Connection Lifting Capacity (kg)
12,000
5,500
Battery (volts/amps)
Battery (volts/amps)
48v 420 A
48v 420 A
Recharge Time (hrs)
Recharge Time (hrs)
6
6
Speed Max (FpM)
Speed Max (MpM)
100
30
Battery Life (ft)
Battery Life (m)
9,600
2,900
Looking for a customized solution? We do that too.
Request a Free Consultation
Flexible
Movement
Power Tuggers are a flexible option for maneuvering carts and loads around a facility, allowing operators to quickly pick up loads and transport them to the next area of production or into storage. These things can move anything. Simply hook it up to the load and go.
Safety
Features
Hedin USA’s PTT3 and PTT6 Power Tuggers are designed to be powerful machines, maneuvering up to 80,000 lbs. The tuggers work by lifting the front end of non-motorized trailers, carts, or pallets, and distribute the load to the wheels on the trailer. By taking on the sheer weight of the load, a single operator can comfortable maneuver heavy loads around a facility at speeds up to 120 feet per minute.
Optional
Cart
Hedin USA offers a customized cart to handle your loads, ensuring that the Power Tugger can easily move your loads on a cart specialized for your application. Maybe it needs to be a little long or a little wider. Either way, we can help.

PTT6 Video Library

next-button next-button-hover
next-button next-button-hover



Optional Ox Cart with up to 125,000 lb. Capacity

next-button next-button-hover
FREQUENT QUESTIONS
Are there any emissions with your battery-powered machinery?

All of our battery-powered equipment, such as our transporters and power tuggers, are emission free thanks to our battery technology.

When do I need my batteries or wheels replaced?

All of our equipment is designed for industrial use with daily use in mind. However, if you run into an issue with your battery or wheels, you can always fill out a form on our “Request a Quote Page” for a replacement part. Normal maintenance, however, varies between products and can be found in your owner’s manual.

Can I charge the PTT6 on a normal 110v outlet?

You can charge the PTT6 on normal 110v outlets, but higher voltage outlets will result in higher charging speeds.
